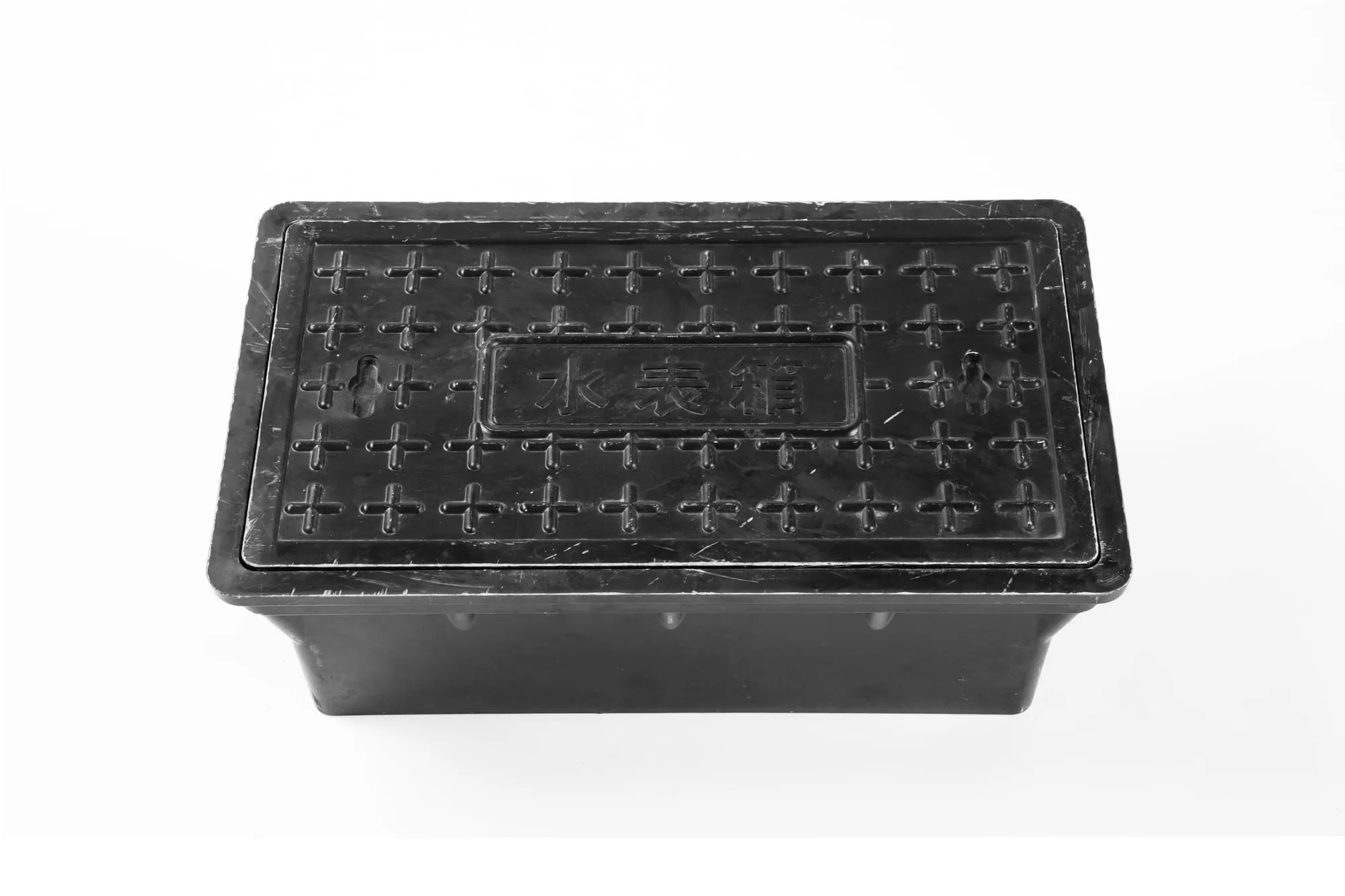

12"×20" Composite Water Meter Box
AMR-ready residential composite meter box
12"×20" BMC/SMC composite water meter box and lid. Signal-transparent for wireless AMR / AMI meter reads, non-conductive, corrosion-proof in irrigation environments, and light enough for one-person field service.
| Product Code | LZB-WMB-S12x20-B125 |
|---|---|
| Clear Opening | 12"×20" (300×500 mm) |
| Overall Size | 12"×20" lid + body |
| Material | BMC/SMC fiberglass-reinforced polymer |
| Load Rating | B125 (pedestrian and light vehicle, off-roadway) |
| Assembly Weight | 13–22 lb (6–10 kg) lid + body |
| Color Options | Black (standard); Gray, Green on request |
| Marking | WATER / IRRIGATION / utility ID — customizable |
| Application | Residential water service, irrigation control, sub-metering |
Why specify this
- ✓ Signal-transparent — wireless AMR / AMI reads pass through the lid
- ✓ Non-conductive and non-magnetic — no utility-locator interference
- ✓ Corrosion-proof in irrigation runoff, fertilizer, and coastal exposure
- ✓ Lightweight — one-person field service reduces back-injury risk
- ✓ Customizable lid markings — WATER, IRRIGATION, RECYCLED, or city ID
The standard residential water-meter footprint, in composite. Wireless AMR / AMI meter reads pass cleanly through the composite lid — no need for special antenna cutouts or signal-leak risks that compromise the seal. The composite body is immune to the long-term degradation that affects steel and plastic-coated steel boxes in irrigation environments (fertilizer runoff, salt, freeze-thaw).
Lid markings (WATER, IRRIGATION, RECYCLED WATER, utility ID) are configurable per the customer’s marking standard.
Need LZB-WMB-S12x20-B125? Get a quote in 48 hours.
Share your project details — quantity, delivery terms, and any drawing or SPPWC plan reference. We confirm fit and pricing, direct from the factory.
